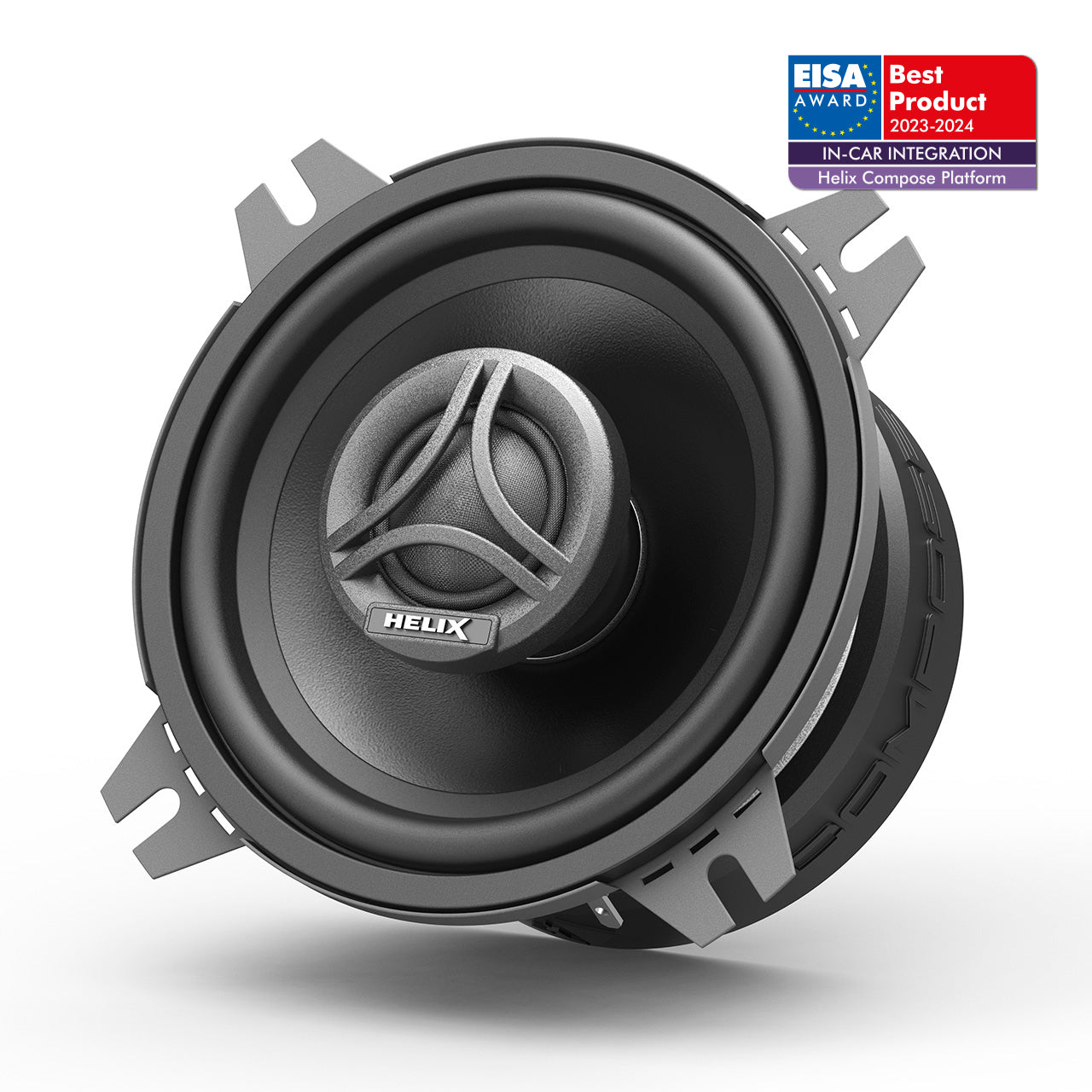

Helix CB C100.2-S3 - 3Ohm

Power handling RMS / Max. P 60 / 90 Watts
Frequency response 100 Hz - 22,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 86 dB @ 2.83V / 1m
82 dB @ 1W / 1m
Outer diameter ø 99.2 mm / 3.91”
Installation diameter ø 89.5 mm / 3.52”
Installation depth 48.9 mm / 1.93”

Midrange
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 113 Hz
Mechanical Q factor Qms 4.97
Electrical Q factor Qes 1.05
Total Q factor Qts 0.87
Compliance Cms 272 μm/N
Equivalent air volume Vas 0.8 L
Force factor B*l 3.9 Tm
Cone area Sd 45 cm2
Moving mass Mms 7.2 g
Mechanical resistance Rms 1.04 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height

8.9 mm
Max. linear excursion Xmax +/- 2.5 mm

Tweeter
Voice coil diameter ø 20 mm

Features
Tweeter Silk dome and neodymium magnet
Midbass
Injected polypropylene cone

Crossover Integrated, 6 dB highpass

Scope of delivery
2 x CB C100.2-S3
1 x Mounting material
